In this blog, I’ll present three Vision-Language-Action (VLA) models from Physical Intelligence in chronological order: \(\pi_{0}\), FAST, and \(\pi_{0.5}\). For \(\pi_{0}\), I’ll describe the full VLA architecture in detail. For FAST and \(\pi_{0.5}\), I’ll focus on their key innovations over previous work.

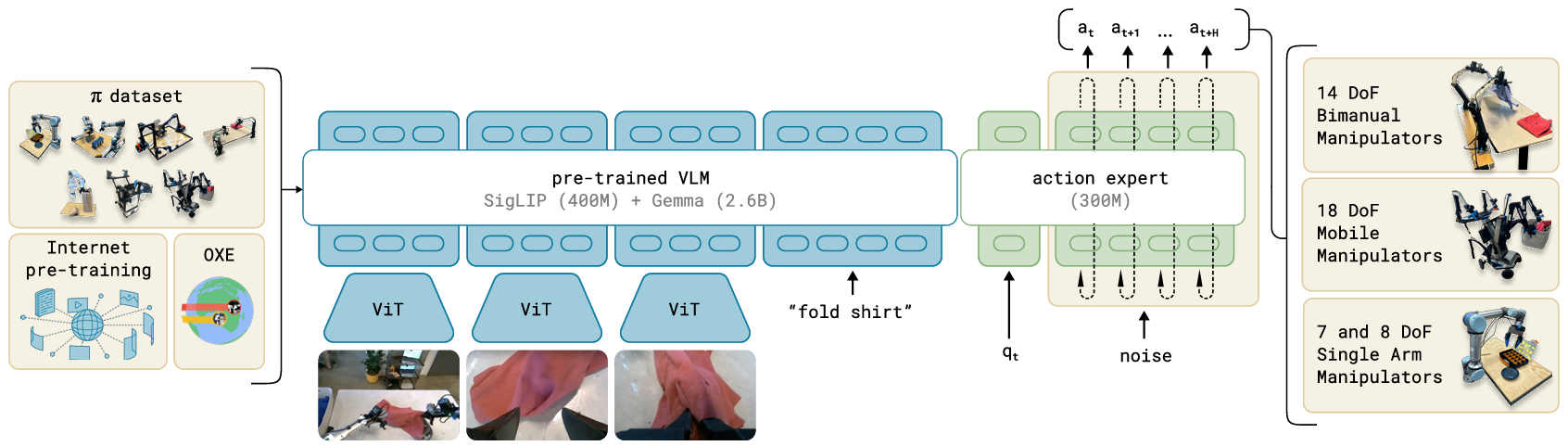

\(\pi_{0}\)

The \(\pi_{0}\) model takes as input: 1) a sequence of images from a camera, 2) a language instruction, and 3) the robot’s current state (e.g., joint angles). It outputs an action command vector.


  • Data Sources:

    • Internet-scale pretraining: We use a 2 B–parameter PaliGemma model, which combines a SigLIP image encoder with a decoder-only Gemma. This model is frozen during \(\pi_{0}\) training, reducing compute but capping generalization to PaliGemma’s visual–language understanding.
    • Robot-collected data: Includes the Open X-Embodiment dataset and in-house hardware data to train the Action Expert.

  • Action Expert (≈300 M parameters, no pretraining):

    1. Stage 1 (Deterministic):

      • Inputs: PaliGemma embeddings + expanded robot state (via MLP).
      • Process: Multiple self-attention layers.
      • Output: A combined embedding used in Stage 2.

    2. Stage 2 (Iterative Denoising):

      • Inputs: Combined embedding + noise sequence representing the action.
      • Process: 10 iterations of self-attention to denoise and predict the final action.

  • Training:

    • Optimize the Action Expert with Flow Matching Loss.
    • Keep PaliGemma parameters frozen.

FAST

FAST converts continuous actions into discrete token sequences in the frequency domain, reframing flow-matching as an autoregressive classification task:

  1. Normalization:

    • Clip each joint’s values at the 1st/99th percentiles.
    • Scale to [–1, 1].
    • Bold: Ensures outliers don’t distort training.

  2. Fourier Transform:

    • For an action sequence \(A = \{a₁, …, a_H\}\), each joint’s time-series is converted to frequency coefficients \(C_{i,k}\).

  3. Quantization:

    • Scale by γ, then round to integers.
    • Zeros out small (high-frequency) components, reducing codebook size.

  4. Tokenization with BPE:

    • Order tokens from low to high frequency.
    • Apply Byte-Pair Encoding to merge frequent integer patterns.

    Caveats:

    • False correlations: BPE may bind unrelated joints’ frequencies.
    • Fixed length: Action sequences need exact alignment; one token error can misassign high-frequency motion.
    • Bold: Explains why FAST is used only for pretraining in \(\pi_{0.5}\).

  5. Decoding (for inference only):

    • Reverse BPE → frequency tokens → dequantize → inverse DCT → denormalize.
    • Note: \(\pi_{0.5}\) skips FAST decoding during inference.

\(\pi_{0.5}\)


\(\pi_{0.5}\) introduces a new high-level language decoding stage compared to \(\pi\_{0}\). This stage translates complex instructions into more intuitive action descriptions, implemented as a Gemma decoder head. Architecturally, this is the only difference between \(\pi_{0.5}\) and \(\pi\_{0}\).

In terms of architecture, the encoder part of PaliGemma is shared across both vision-language feature extraction and high-level instruction decomposition. Unlike \(\pi\_{0}\), \(\pi_{0.5}\) does not freeze the VLM parameters during training, likely due to the increased scale and diversity of the training data.

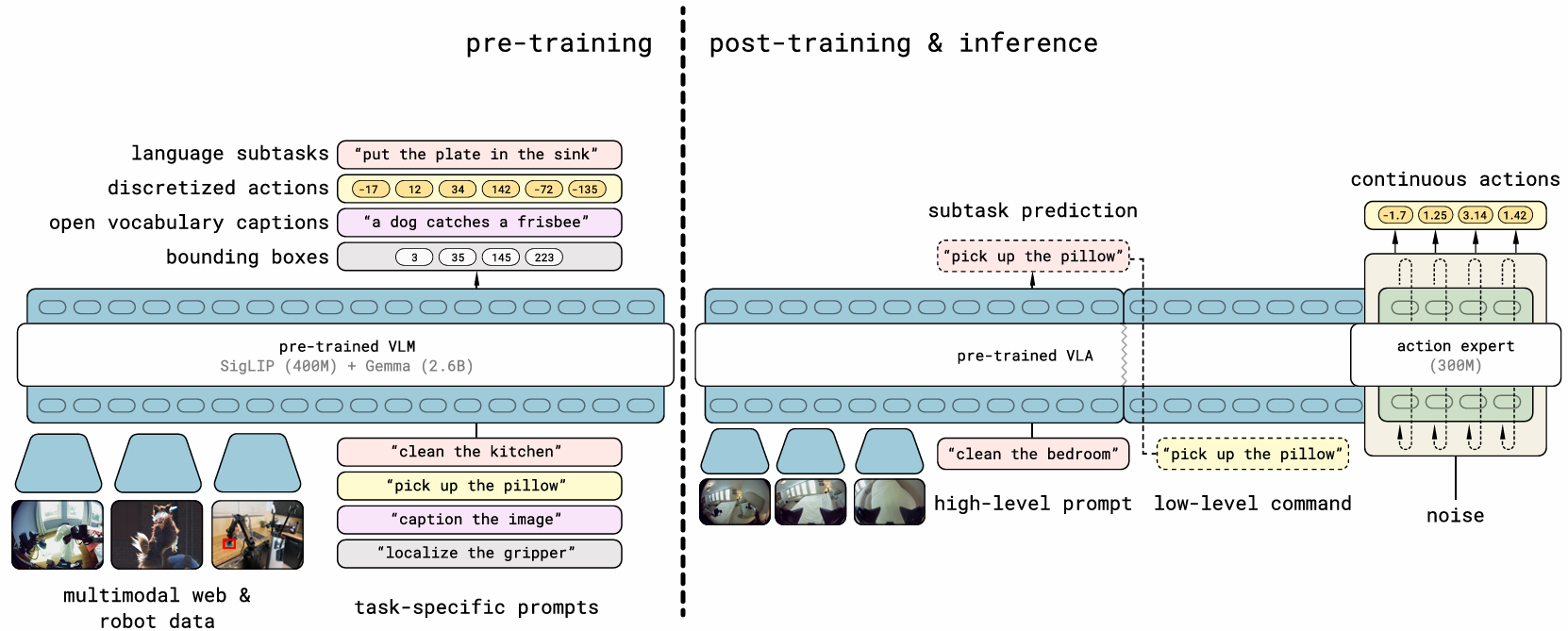

Training Strategy

Training is divided into two phases: pretraining and post-training.

  • Pretraining: The PaliGemma VLM is pretrained using various type of data, including discrete action tokens from FAST, object detection, .... As mentioned by author, where they said "We do not pretrain an action expert. Instead, we rely on the pretrained VLM and align it with the action space post-hoc using alignment heads", action expert is not involved in .
  • Post-training: Like in \(\pi\_{0}\), the VLM is frozen, and the action expert is trained using Flow Matching Loss.

In summary, \(\pi_{0}\) is a system that assembles prior components from the field---a VLM, a Transformer decoder, and a flow-matching mechanism. The team later proposed \(\pi_{0.5}\), a pretraining method for the VLM to address the limitation in \(\pi_{0}\) where the VLM could not be customized pretrained. If we're being honest, FAST feels more like a joke than a breakthrough. The method sounds fancy, but its actual contribution? Questionable at best. Still, we have to give it credit for one thing: it teaches us a lot about what not to do when aligning vision and action in multimodal systems.
